Ultrasonic Thickness Gauge
An ultrasonic thickness gauge is a non-destructive testing (NDT) instrument used to measure the thickness of materials. It operates on the principle of ultrasonic wave propagation, where high-frequency sound waves are transmitted through a material. The portable gauge measures the time it takes for the sound waves to travel through the material and return to the device.
By providing reliable, real-time measurements, ultrasonic thickness gages are indispensable in helping Singapore maintain high standards of safety, efficiency, and regulatory compliance in all industries.
Ultrasonic Thickness Measuring Principle
The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the workpiece, and the sound waves are coupled into the test material and travel through it until they encounter a back wall or other boundaries. The reflections then travel back to the transducer, which converts the sound energy back into electrical energy. In essence, the gauge listens for the echo from the opposite side. Typically this time interval is only a few millionths of a second. These gauges programmed with the speed of sound in the test material, from which it can then calculate thickness using the simple mathematical relationship. The thickness gauge offered in Singapore comes as a portable hand-held instrument with a carrying case.
Buy Ultrasonic Thickness Gauges in Singapore
Hand-held, Portable, Easy-to-Operate Multi-Mode Thickness Gauge
TG 22 Ultrasonic Wall Thickness Gauge
The model TG22 is a digital thickness gauge which based on the ultrasonic measurement principle. The instrument is capable of measuring the thickness with various materials, such as metal, plastic, ceramic, glass and many other materials which are ultrasonic conductive.
With the alternative mode, it can measure the velocity of all kinds of materials to get the respective material identical sound velocity. Compared with the traditional measurement methods, the advantage of an ultrasonic thickness gauge is exposed to one side of the workpiece to complete the measurement without affecting any process under operation. The instrument is as easy to use with just applying the acoustic coupling compound to the probe surface, which then is placed firmly on the workpiece.
The wall thickness displayed can be stored directly in the transmitter for later data-logged retrieval. Its’ unique non-destructive testing performance provides the perfect solution for the thickness testing of closed pipes, containers, pressure vessels, etc. It is widely used for petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other industry because of quality control, production, and inspection purposes.
- Large back lit LCD Display
- Rugged Hand-held design
- Zero point calibration, two-point calibration, automatic error correction system
- Coupling status indicator
- Auto Sleep and auto power off function to conserve battery life
- Small, portable, high reliability for harsh operating environment, anti- vibration, antishock and anti-electromagnetic interference
- Pipelines
- Storage tanks
- Lighting Columns
- Road Tankers
- Bridges
- Pressure Vessel
EESIFLO: TG22
Design: Field instrument with 1 measuring channel
Transducers: EES-N05/90⁰ (Standard Supply)
MEASUREMENT
Measurement Principle: Transit time difference correlation principle (pulse/echo)
Measuring Range: mm 0.75…300 (in steel)
Sound Velocity: m/s 300…19999
Resolution: mm 0.1 / 0.01
Measurement Frequency: Single-point measurement 4/s, Scan Mode 10/s
Accuracy: ± 0.5% of reading ( ± 0.01mm thickness)
TRANSMITTER
Power Supply: Two “AA” Size, 1.5 volt alkaline batteries
Memory Capacity: Memory for 100 files (up to 100 values for each file) of stored values
Alarm Function: Upper and lower limit can pre-set. It alarms automatically when the result value exceeding the limit
Working Time: 100 hours typical operating time (EL backlight off)
Housing Material: Extruded aluminium body suitable for use under harsh environment
Dimension: mm 130 x 76 x 32
Weight: g 345
Ambient Temperature: ⁰C -10…+50
Display: 4.5 digit LCD with EL backlight
Menu Language English, German, French, Spanish, Italian
COMMUNICATION (OPTIONAL)
Interfaces: USB 2.0
TG 26 Multi-Mode Ultrasonic Thickness Gauge
The TG26 Digital Thickness Gauge is a robust, hand-held instrument designed for accurate thickness measurement of various materials such as metals, plastics, ceramics, and glass. It includes a TFT color display, multi-mode operation (Pulse-Echo and Echo-Echo), and Bluetooth wireless capability. The device allows for measurements without removing paint or coatings and includes calibration functions, a coupling status indicator, and power-saving features. It is suitable for harsh environments with its anti-vibration, anti-shock, and anti-electromagnetic interference design. The TG22 also supports USB 2.0 communication and comes in a durable extruded aluminum body. This versatile gauge is ideal for applications including pipelines, storage tanks, lighting columns, road tankers, bridges, and pressure vessels.
- TFT Colour Display
- Multi-Mode Pulse-Echo, Echo-Echo
- Echo-Echo Mode perform measurement without removing the paint or coating
- Rugged Hand-held design
- Zero point calibration, two-point calibration, automatic error correction system
- Coupling status indicator
- Auto Sleep and auto power off function to conserve battery life
- Small, portable, high reliability for harsh operating environment, anti- vibration, anti-shock and anti-electromagnetic interference
- Integrate with Bluetooth wireless capability
- Pipelines
- Storage tanks
- Lighting Columns
- Road Tankers
- Bridges
- Pressure Vessel
- Multi-Mode: Pulse-Echo mode and Echo-Echo
- Capable of performing measurements on wide range of material, including metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic wave well- conductive
- Other transducers type is available for unique applications, including for coarse grain material and high temperature applications.
- Probe-Zero functions, sound velocity calibration
- Two Point calibration
- Three Working modes: normal mode, scan mode and diff
- Coupling status indicator showing the coupling status
- Units: Metric or Imperial unit available for
- Battery information indicates the level of the battery
- Auto sleep and auto power off functions to conserve battery
- Communications: USB 0. Port
- Bluetooth
- Case: Extruded aluminium body suitable for use under robust
- Outline dimensions: (L) 125 x (W) 67 mm x (H) 32 mm
- Weight: 295 g
To make sure the gauge working properly, it needs to use coupling compound to fill the gaps between the transducers surface and the measured workpiece surface
Optional Spare Transducer Selection
What is an Ultrasonic Thickness Gage?
These types of thickness gauges often called thickness meters are electronic devices used to take thickness measurements non-destructively on solid materials, machinery parts, tanks, sheet metal, plastics, glass, or even coatings in a range of situations. Unlike the traditional thickness meter which uses a mechanical claw to measure thickness, the user can very easily measure the thickness of a solid substrate by a simply applying acoustic couplant to the thickness probe head and view instantaneous readings for thickness in imperial or metric units.
Types of Gauges

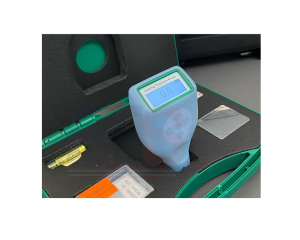

- Coating Thickness Gauge
- Ultrasonic Thickness Gauge
- Mini Thickness Gauge
- Thickness Meter
Meter Gage options:
Since thickness measurements require a different measurement resolutions(according to the requirement), our organization has not only supplied ultrasonic thickness meters but also a large selection of different thickness probes and ultrasonic transducers to suit individual needs. Some of the more common thickness measurements might only require measurement of one material but in the case of coatings, we have options to measure through coatings.
Thickness Sensor Features:
- Non-destructive testing by ultrasonic sensors
- Highly accurate
- Immediate visual readout of thickness
- No need to access both sides of material to ascertain it's thickness
- User friendly and fast response
More applications:
Do you need to buy a Thickness Gage?
Here at EES we have several years experience and our support technicians are available to help end-users, contractors, consultants and service companies select and buy a quality thickness gauge for your application.
Most users in Singapore require thickness measurements for:
- Mechanical parts
- Solid fabrications (metals, plastics, glass)
- Car, van or bus vehicle body thickness
- Internal quality measurements
- Marine parts
- Structures
